Oil and Gas Manifold
Oil and gas manifold is to divert the flow of oil and gas from the separator to other equipment.Oil manifold connects to the separator oil line to the tank, the transfer pump, and the burners. It allows oil leaving the separator to be diverted to the tank or the burners, or sent directly to a production line. typically, it consisits an arrangement of piping, five ball valves, wing union connections and skid assembly, but flexible configuration of valves and ports.

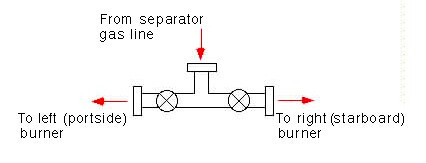

Gas from the separator flows through the gas manifold (connected to the separator gas line) and is directed to one of two gas flares, the gas manfild is equipped with 2 ball valves.
Oil and gas manifold inquiry information
Customers may customize their purchase through the following data:
- Working Pressure
- Nominal Size
- Quantity of valves
- Type of valves
--------------

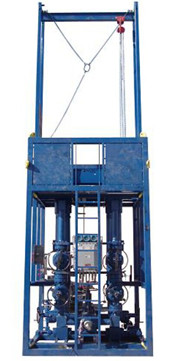

Dual Pot Sand Filter
Dual pot Sand Filter unit is designed for solving the concerns of erosion and high pressure by filtering sands and solid particles in well fluids coming out from oil/gas well effluent, to prevent erosion of downstream equipment.
Dual Pot Sand Filter unit is composed of two vertical sand pots, Gate valves, tee, cross, needle valve, pipeline, slide, frame, auxiliary pipeline and other fittings.
Dual pot sand filter available Specification
- Pressure Rating: 5000 PSI, 10,000 PSI, 15,000 PSI
- Material Class : AA-EE
- Gas flow capacity: up to 3,000,000 m3/d
- Pot volume: 46 L
- Liquid flow capacity: up to 15,000bpd
- Design Codes: ASME VIII, API 6A, ASME B 31.3, DNV 2.7-1
-----------------

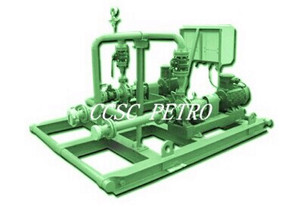

Crude Oil Transfer Pump
Crude Oil Transfer Pump is designed to empty the tank and provide sufficient pressure to send the oil to the burner for efficient burning. The transfer pump can also be used to send oil from a tank to a pipeline, another tank or another facilities.
We can provide gear, screw, and centrifugal pumps, we need below information for selecting a transfer pump:
- The pumping capacity
- The discharge pressure
- Electric or diesel driven pump
Application
- Production
- Onshore and offshore operation
- Transport and storage
- Well Testing
